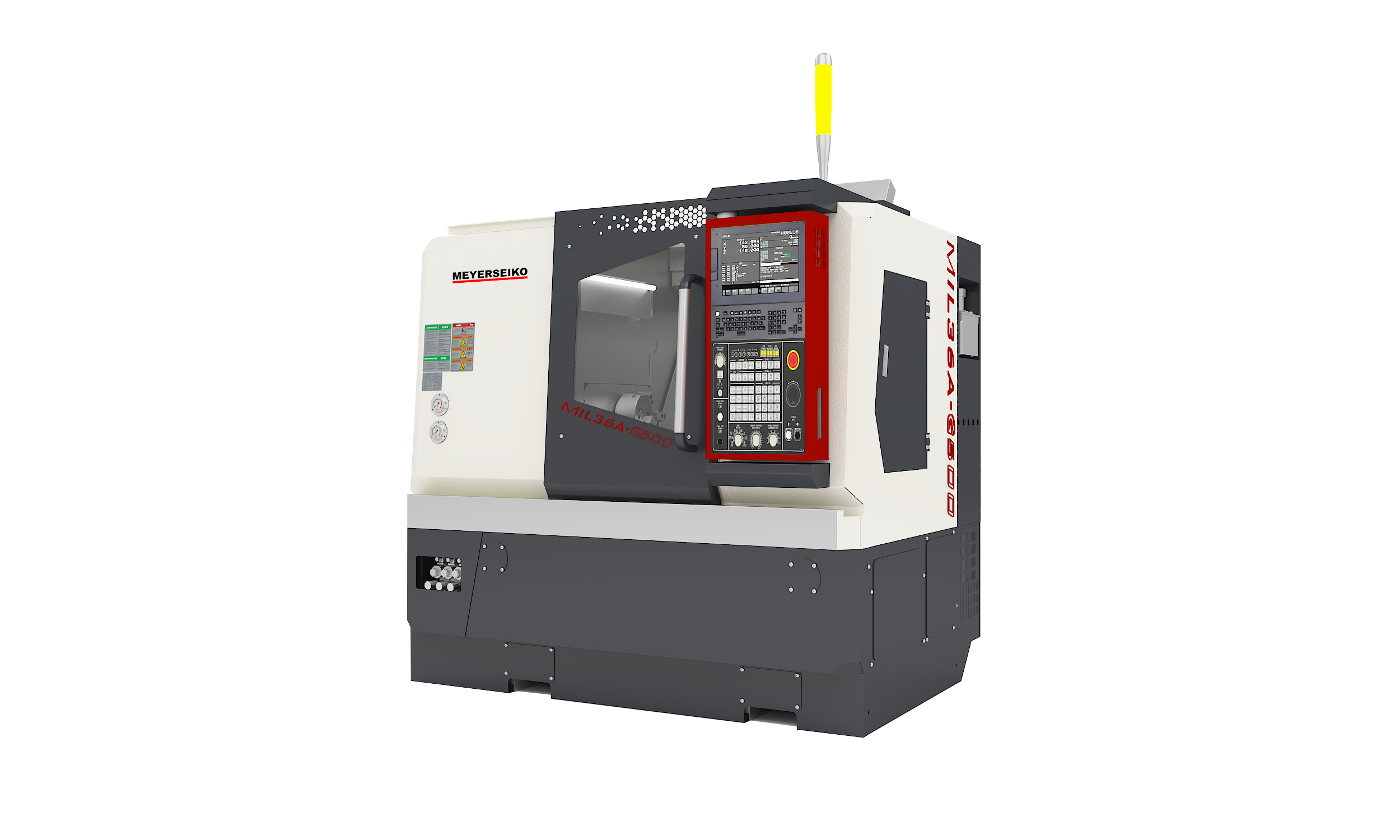

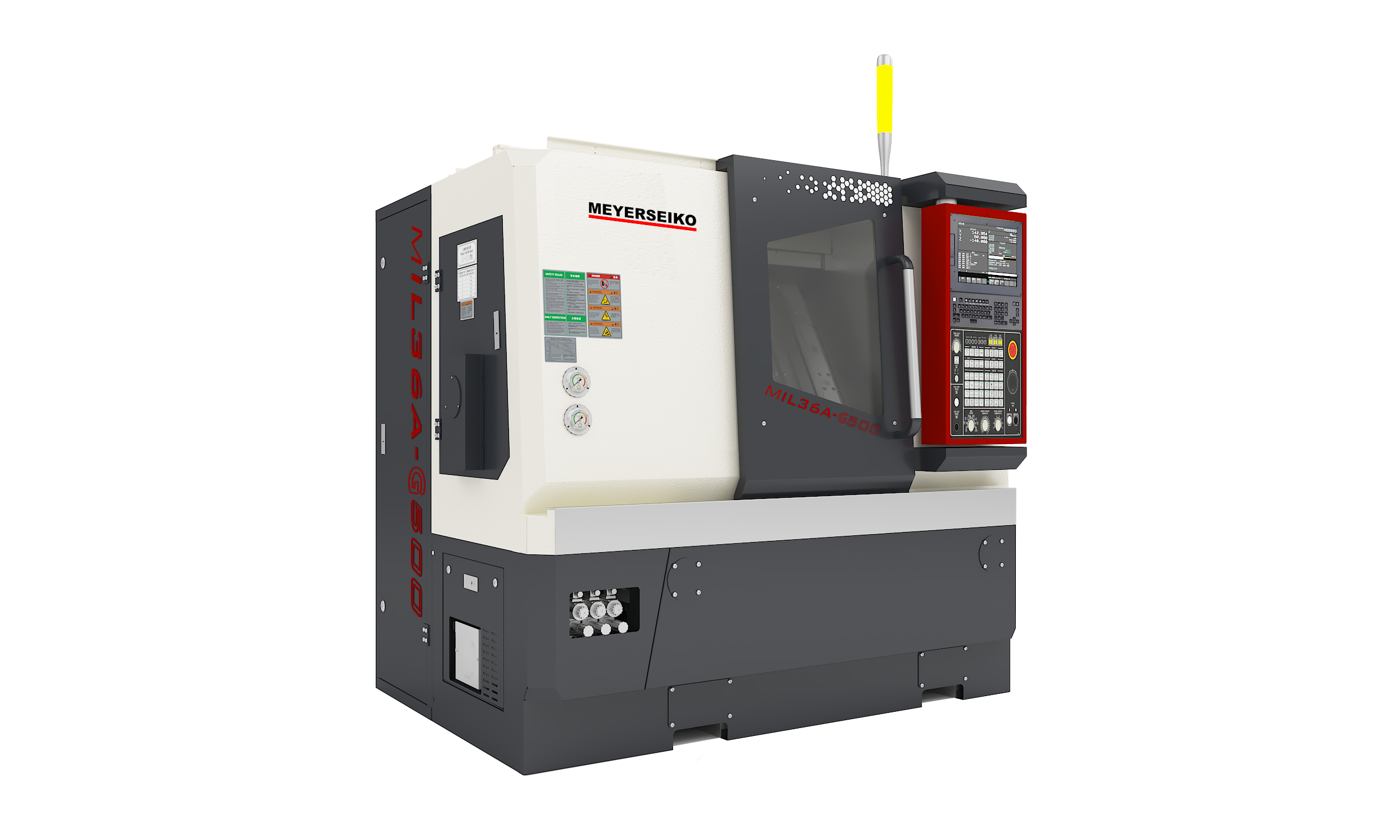

Slant Bed type Horizontal CNC Turning Center MIL36 Series

Inclined type CNC Turning Machine

Model MIL36A-G500,MIL36A-T250,MIL36B-G500,MIL36B-T250

Product Characteristics

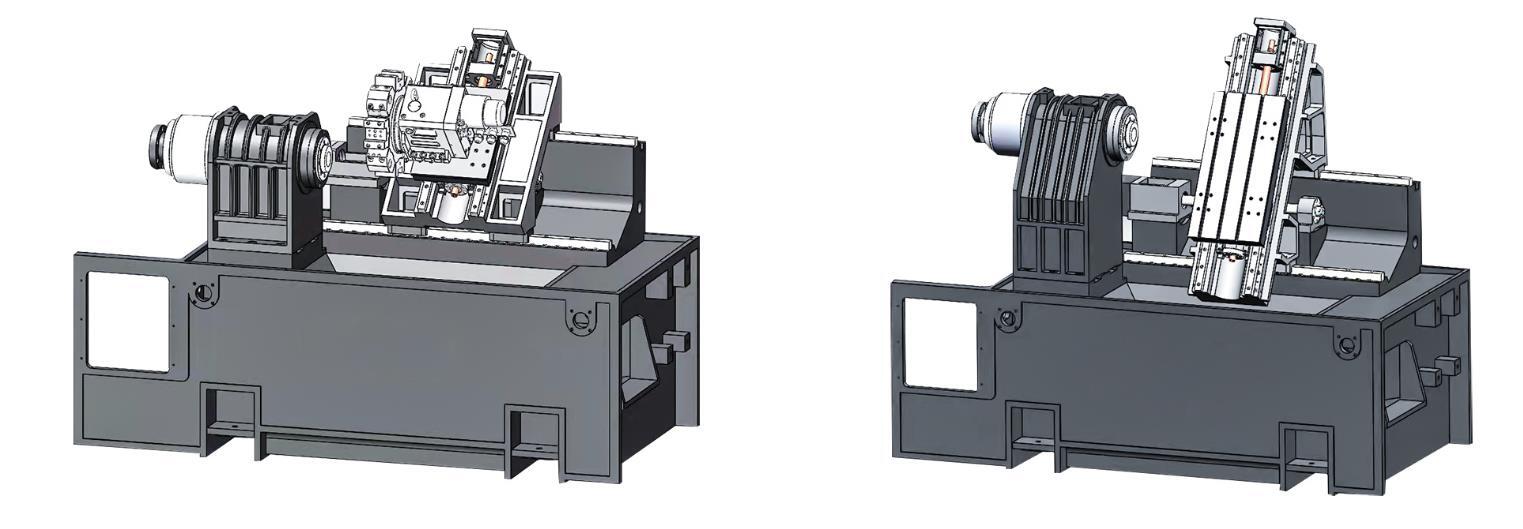

● The main parts of the machine are made of high quality resin sand molding, high strength high quality cast iron, with perfect heat treatment process, eliminate residual stress, and arrange enough reinforcement, to ensure that the whole machine has enough strength, rigidity and high stability all through ternary analysis.
● The Spindle uses permanent magnet synchronous spindle direct drive, its advantages are sensitive drive, stable output torque, high finish, can achieve fast positioning and high speed, low noise and other characteristics. The base adopts double-layer isolation technology to prevent high pressure water leakage.
● The machine adopts modular design, which can quickly realize the automation device to meet the needs of customers.
● Extractive coolant tank, easy to clean chips.
● A wide range of options: such as feeder, feeder, cutter, automated truss robot.

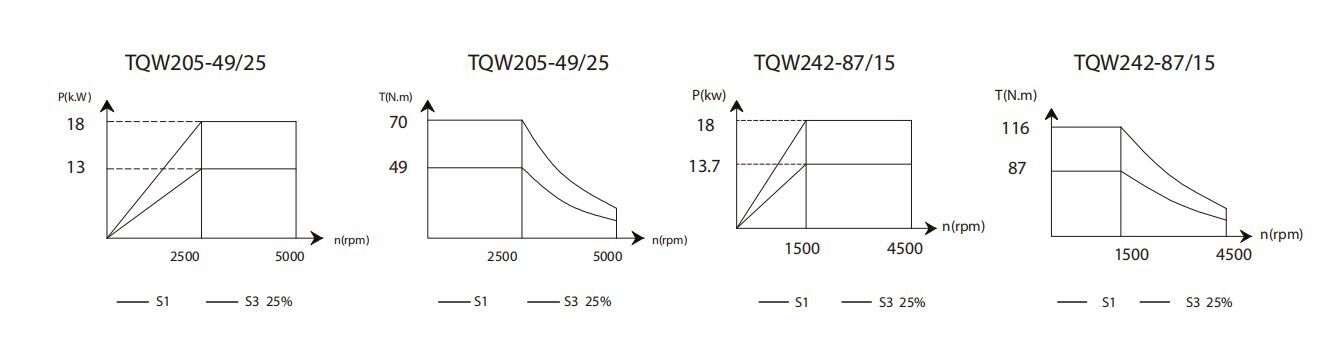

Spindle Power Torque

Items		Unit	MIL36A-G500	MIL36A-T250	MIL36B-G500	MIL36B–T250
Processing Range	Max.Swing dia.on Bed	mm	φ410	φ410	φ450	φ450
Processing Range	Distance from Spindle Center to Carriage	mm	80	80	111	111
Spindle	Spindle Thru-Hole Dia.	mm	φ45	φ45	φ56	φ56
	Spindle Type	/	A₂-5	A₂-5	A₂-5	A₂-5
	Collet/Chuck Size	“	Collect 46	Collect 46	Chuck 6″	Chuck 6″
	Max.Spindle Speed	rpm	5000 (8000)	5000 (8000)	4500	4500
	Max.Bar Can Pass	mm	φ36	φ36	φ46	φ46
	Spindle Motor (Permanent magnet synchronous spindle)	kw	13	13	13.7	13.7
	Max.Spindle Torque	Nm	49	49	87	87
X/Z Axis	X/Z Axis Linear Guideway Type	/	Ball type	Ball type	Ball type	Ball type
	X Axis Travel	mm	500	250	500	250
	Z Axis Travel	mm	350	250	350	250
	X/Z Axis Linear Guideway Width	mm	30/30	30/30	30/30	30/30
	X/Z Axis Screw dia./Pitch	mm	φ32×10/φ32×10	φ32×10/φ32×10	φ32×10/φ32×10	φ32×10/φ32×10
	X/Z Axis Rapid Feedrate	m/min	24/24	24/24	24/24	24/24
	X/Z Axis Positioning accuracy	mm	±0.006/300	±0.006/300	±0.006/300	±0.006/300
	X/Z Axis Re-Positioning accuracy	mm	±0.003	±0.003	±0.003	±0.003
Tool Changer System	Tool Changer system type	/	Gang type	Tool Turret	Gang type	Tool Turret
	Tool Positions No.	/	5	8	5	8
	Size of Cylindrical turning tool	mm	*20×20	*20×20	*20×20	*20×20
	Max.dia. of Boring hole turning tool	mm	φ25	φ25	φ25	φ25
Others	Machine Size(L×W×H)	mm	1805x1400x2000
Others	Weight	kg	2200	2200	2300	2300

* A Series Standard with Hydraulic Collet, Spindle Thru-Hole Dia. : φ45mm,

B Series Standard with Hydraulic Chuck, Spindle Thru-Hole Dia. : φ56mm.

* G Series is with Gang type Tool Post,T Series with Tool Turret

CNC lathe is one of the widely used CNC machine tools. It is mainly used for cutting the inner and outer cylindrical surfaces of shaft or disc parts, inner and outer conical surfaces with arbitrary cone angles, complex rotating inner and outer surfaces, cylindrical and conical threads, and can perform groove cutting, drilling, expanding, reaming, and boring.
